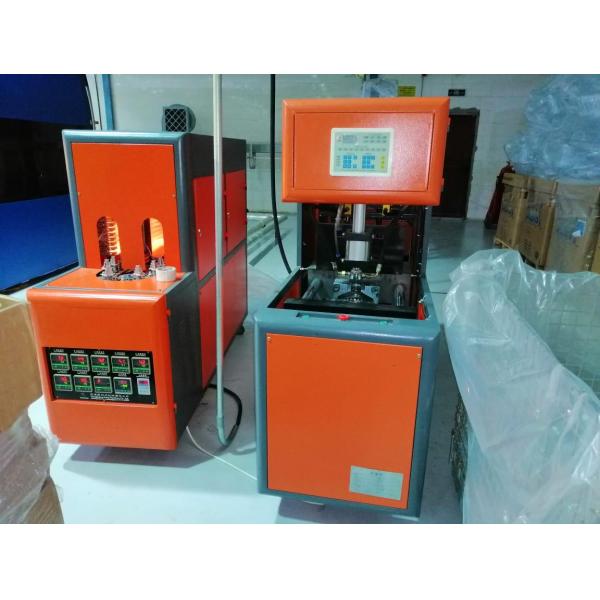

Semi Automatic 2 Cavity PET Jar Blowing Machine Stretch Blowing Type

zhangjiagang aquatrin Machinery co.,ltd

Semi Automatic 2 Cavity PET Jar Blowing Machine Stretch Blowing Type

  • 1
  • 2
  • 3

Brand Name : Aquatrin

Model Number : CPJ

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD5000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Automatic : Semi automatic

cavity : 2

PLC Brand : MITSUBISHI

Rotary Cylinder Brand : BOTHFIT

Machine type : Semi-automatic Bblowing Machine

Processing Type : Stretch Blowing

Contact Now

Best Selling Durable Using TH-S5 Semi Auto Wide Mouth Pet Blow Moulding Machine Semi Pet Jar Blowing Machine

Specification
Item
measurement
TH-S5
Material
PET
output
Pcs/hr
800
Max bottle diameter
mm
200
Max bottle height
mm
450
Mould plate size
mm
520*350
Mould thickness
mm
180
Max opening stroke
mm
260
Mould closing force
KN
480
Heating power
KW
12
Working pressure
Mpa
0.8
Blowing pressure
Mpa
3.0
Blower size/weight
mm
2270*650*1650(800KG)*2pcs
Heater size/weight
mm
1760*650*1360(250KG)
Voltage
220/380V 3P 50-50HZ


Packaging & Shipping

Under normal conditions ,the blow molding machine to abroad will be packaged in wooden case. In addition ,we will also pack the machine according to the requirements of specific customers. Subject to the measurement of main blower ,we will choose corresponding wooden case, Longer is a professional mould machinery company .we will try our best to satisfy the kinds of demand of customers.



Product Tags:

ISO PET Jar Blowing Machine



2 Cavity PET Jar Blowing Machine



2 Cavity Semi Automatic PET Blowing Machine


Quality Semi Automatic 2 Cavity PET Jar Blowing Machine Stretch Blowing Type for sale

Semi Automatic 2 Cavity PET Jar Blowing Machine Stretch Blowing Type Images
