2500ml Juice Filling Machine

zhangjiagang aquatrin Machinery co.,ltd

2500ml Juice Filling Machine

Brand Name : Aquatrin

Model Number : RXGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD12000-50000 1Set

Payment Terms : L/C, T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Packaging Type : Bottles

Funtion : Beverage Filling Packaging

Control : PLC+ Touch Screen

Dimension(L*W*H) : 2800x2230x2700

Function : Bottle Washing Filling Capping

After Warranty Service : Video technical support, Online support, Spare parts,

Contact Now

Automatic NFC Fruit Juice Aseptic Filling Machine Production Line

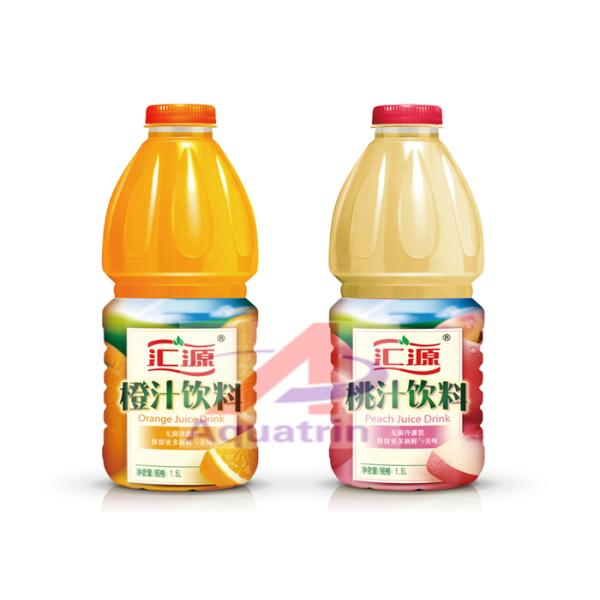

Final Product
Suitable bottle
Bottle material
PET
Bottle volume(ml)
200ml--2500ml
Bottle type
Round , Square or coustomized
Bottle height(mm)
160-340
Bottle diameter(mm)
50-100
Product Description

Main Features:
1. Using the wind sent access and move wheel in the bottle directly connected technology;
canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to
adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch
with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of
conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from
famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Product Paramenters
Model
RCGF14-12-5
RCGF16-16-5
RCGF24-24-8
RCGF32-32-10
RCGF40-40-12
RCGF50-50-15
Capacity (BPH)
3000-4000
5000-7000
6000-8000
8000-10000
12000--15000
18000-25000
Power supply
2.42 KW
3.12 KW
3.92 KW
3.92 KW
5.87 KW
7.87 KW
Overall dimension
2360×1770×2700
2760×2060×2700
2800×2230×2700
3550×2650×2700
4700×3320×2700
5900×4150×2700
Weight (KG)
2600
3500
4800
6500
10000
12000
Detaile Images
Washing Part
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
  • Filling Part

meet the requirements of hot filling and filling (the liquid level is controlled at about 15 mm, and the level level can be fine-tuned), so as to minimize the return flow of the material, thus providing hardware guarantee for ensuring the flavor of the product.


Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head


Cap loading machine



Pre-process system.
1 High-shear emulsifying tank + Plate heat exchanger 2 Mixing tank 3 UHT sterilizer + homogenizer machine + Buffer tank 4 Hot water system + Hot water tank 5 CIP cleaning system.


Bottle Inverter Chain
1/Use juice own high temperature to kill the bacterial inside cap. 2/Use juice own high temperature to improve sealing of bottle to extend warranty time. 3/Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.

We suplly Free Factory Layout design


We suplly Free Bottle Shape design


Water treatment system


Labeling Machine

Laser date printer

PE film wrapping package machine


Customer Photos


After Sales Service
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.automatic water filling machine video
