380V 2700KG 5 Gallon Water Filling Machine 600BPH For Plastic Bottle

Name: 380V 2700KG 5 Gallon Water Filling Machine 600BPH For Plastic Bottle
Brand: Aquatrin
Price: 2000 USD

Quality 380V 2700KG 5 Gallon Water Filling Machine 600BPH For Plastic Bottle for sale

Brand Name : Aquatrin

Model Number : QGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD2000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Packaging Type : Bottles, Barrel

Driven Type : Electric

Key Selling Points : Easy to Operate

Filling Material : Water

Machinery Capacity : 600BPH

Dimension(L*W*H) : 6100*2500*2200

Contact Now


We are professional manufacturer of liquid beverage packaging solutions. We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine.
Product Description

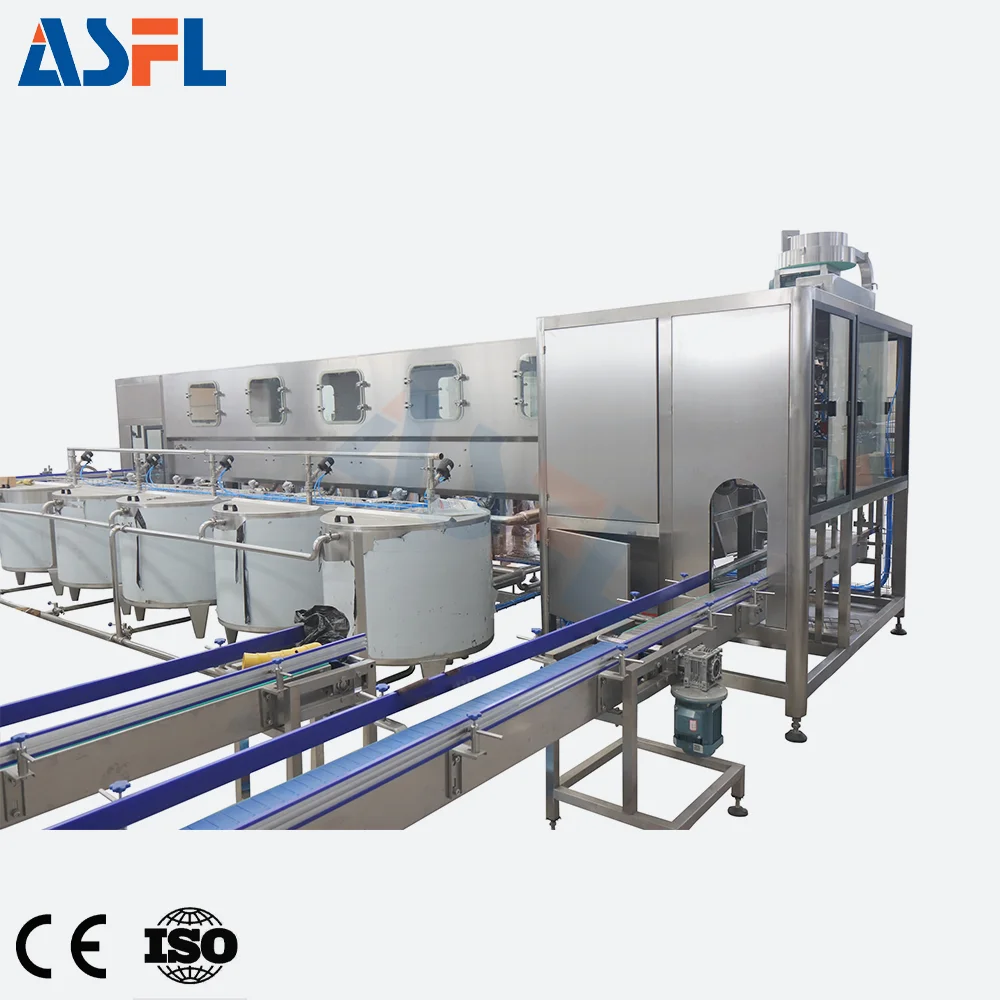

5 Gallon Bottling Water Filling Machine.
This equipment is mainly composed of five gallons of automatic adjustment available outside the pull out cover machine, rotary brush barrels machines, automatic bucket machine, washing machine, normal pressure filling machine, cover, cover, cover, capping machine, intelligent steam heat shrinkable machine, on-line inspection, straight-line pail bagging machine, palletizing machine set, such as by conveying system connected into a continuous operation (flow) of the whole.
Product Details
Pull out cover machine.
Cap-pulling machine can be used alone, or online layout.Realize pipeline operations.The cap pulling head is mainly composed of cap pulling claw, cylinder and other components. The cap pulling head can be adjusted up and down, and the cap pulling claw can be fine-tuned. It does not hurt the bottle mouth and has strong applicability to different bottle mouths.The host machine is controlled by PLC. When the bottle runs to the cap-pulling position, the cap-pulling head drops, the cap-pulling claw grasps the edge of the bucket mouth cover, and the bucket is lifted and the lid is pulled out.
Washing Part.
When the power is connected, the PLC power starts to work, control the contactor to pull, so that the disinfectant pump starts to work, then output the signal PLC, so that the washing conveying motor and the filling conveying chain motor work, then the bucket washing mechanism makes the barrel body step by step into each process to start washing, the washing time can be programmed by the PLC controller.After rinsing, the drum falls to the pail rack.
Filling Part.
The filling head adopted by this equipment, when the bucket is sent to the filling position, it will automatically drop the
 filling head under the control of PLC to fill the bucket.When filled, the filling valve returns and the bucket moves forward.After the cap manager is capped, he slips to the place where he hangs the cap and hangs the cap on the barrel.
Capping Part.
The gland is completed by the gland cylinder.When the bucket is close to the gland position, the detector detects and sends a signal, the gland cylinder moves instantaneously, and the gland is completed.With this form of capping, good effect, simple structure.
Barrel bagging machine.
The stopper cylinder falls and the conveyor chain sends a bottle under the lifting mechanism while the stopper cylinder rises to stop the rear cylinder from moving forward.Then the lifting mechanism goes down and lifts the bottle, and the staff sets the bag out of the bottle. The automatic time is flexible and adjustable.The lifting mechanism drops the bottle and the conveyor chain is sent out, at which point a procedure is completed.Repeat.
Product Paramenters
 	 			Packaging Type
 			Bottles

 			Packaging Material
 			plastic

 			Driven Type
 			Electric

 			Voltage
 			380V

 			Dimension(L*W*H)
 			6100*2500*2200

 			Weight
 			2700KG

 			Machinery Capacity
 			600BPH

 			Filling Material
 			Water
